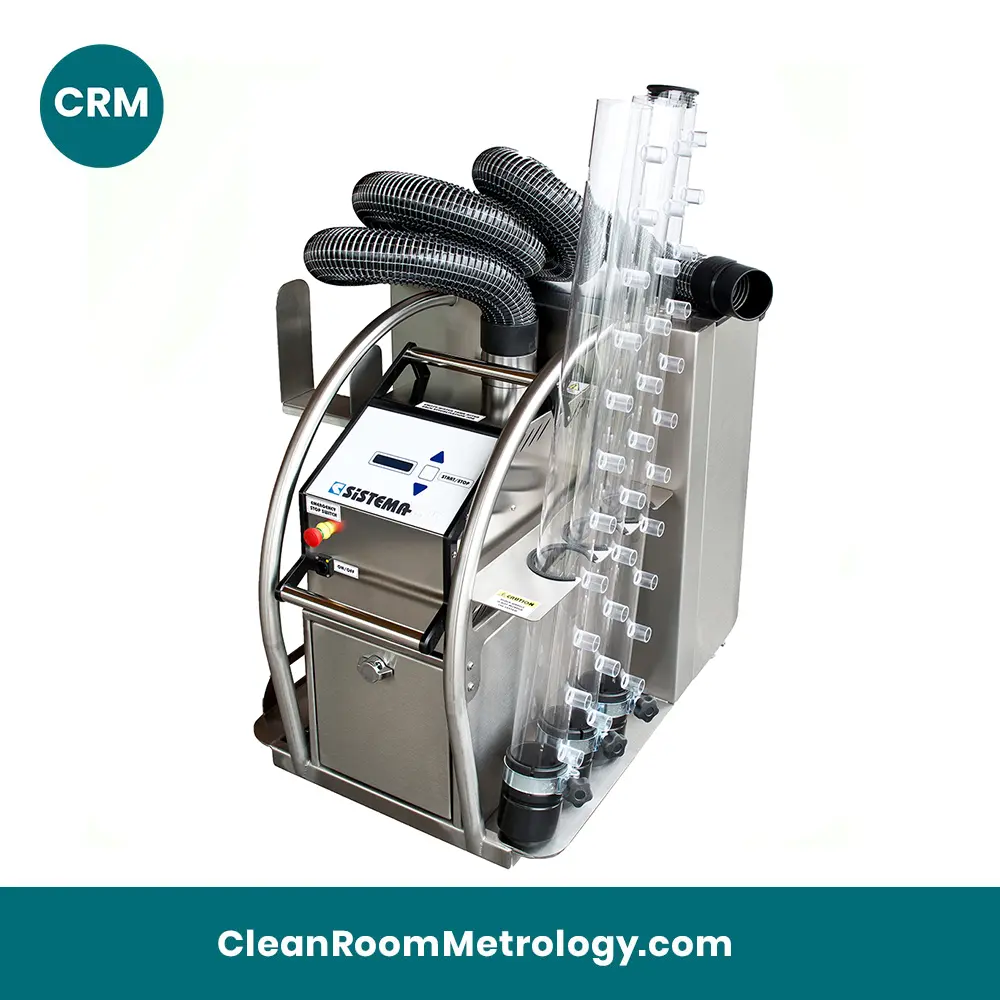

Apollo 35 Liquid Nitrogen Fogger, LN2 Fogger
Customer Review 0
★★★★★ 5/5
Apollo 35 Nitrogen-Di-Water Fogger with rolling, stainless steel enclosure, ≈ 5 M³ / Min. fog, ≈ 15 ft. visual distance, ≈ 225 M³ fog during typical 45 minute operation to visualize airflow turbulence in small Clean Rooms, ISO Suites and Barrier Isolators. One 80mm fog outlet with velocity control and volume control.
Share it :
International Shipment
Your orders are shipped seamlessly between countries
30 Days Warranty
You have the right to return your orders within 30 days.
Secure Payment
Your payments are secure with our private security network.
Description
Apollo 35 Liquid Nitrogen Fogger, LN2 Fogger
| Fogger Enclosure | Apollo 35 has a dense, Nitrogen-Di-Water fog with 2-3 micron fog droplets using LN2+DI Water, or WFI or Sterile Water. 316L stainless-steel enclosure with One 80mm Fog Outlet, 13.5 Liters water and 35 Liters LN2 |
| Where Used | Fog in small pharmaceutical clean rooms, sterile rooms, ISO suites. Also use for stage fog and in small semiconductor clean rooms. One 80mm Fog Outlet and 80mm hose options |
| Amount of Fog | 5 Cubic Meters Nitrogen-Di-Water fog/minute |
| Fog Cycle Time | about 35 minutes at max fog volume; or about 60 minutes at lowest fog volume |
| Typical Fog Range | about 15-18 feet using a Y Adaptor connected to the single 80mm fog outlet |
| Liquids Used | Liquid Nitrogen + De-Ionized Water, Sterile water of WFI (Water for injection) water |
| Optional Accessories | 0.6M Fog Rake, 1.2 M x 80mm Fog Rake, Wireless Remote Control, 5Mx80mm Fog Hose, 5Mx50mm Fog Hose, 80mm Y Adaptor w/ Butterfly Valves, LED Fog Contrast Light |
| Power | Internal power supply with 115 VAC, 60 Hz; 220 VAC, 50 Hz |
Apollo 35 Nitrogen-Di-Water Fogger, Part # Apollo-35, is used in smoke studies and airflow visualization Studies in small semiconductor clean rooms, small pharmaceutical ISO Suites and industrial clean rooms. Nitrogen-Di-Water foggers combine nitrogen and water vapor to form a dense, white fog to visualize airflow turbulence; using liquid nitrogen and water (De-ionized water, WFI [water for injection] or sterile water. Below is a selection of foggers and performance details for each fogger, which you can match to your requirements for your smoke studies.
Nitrogen-Di-Water Fogger such as the Apollo 35 uses 13.5 Liters of Di-Water, Sterile Water, or WFI Water. The Apollo 35 has a 35 Liter LN2 Dewar. The Fog is produced by allowing the LN2 to boil, which occurs at room temperatures, thus releasing a nitrogen vapor. The nitrogen vapor is directed into the water cavity, which has a dual water heater that controls water temperature from 55C to 70C. The heated water emits water vapor, which then combines with the nitrogen vapor to form a very dense, highly visible fog. This fog is directed into your airflow by fog hose or fog rake to visualize airflow for smoke studies. The dense fog is composed of 2-3 micron fog vapor droplets, and is very dense in visibility. Nitrogen-Di-Water fog is used to visualize airflow turbulence, airflow patterns, airflow uniformity and to locate dead airflow zones in clean rooms and around equipment. Compare the different Nitrogen-Di-Water foggers for performance below.
| Smoke Study, Airflow Visualization Studies, Comparison Chart | Fogger Design | Fog Application | Fog Volume | Fog Duration | Visual Airflow Distance | Liquids Used |
| Apollo 35 Nitrogen-Di-Water Fogger (Part # Apollo-35) on wheels | Apollo 35 has a dense, Nitrogen-Di-Water Fog with 2-3 micron fog droplets using Liquid Nitrogen DI Water, or WFI or Sterile Water; superb fog volume; 316L, stainless steel enclosure on rolling wheels. 1 80mm Fog Outlet. 13.5 Liters water, 35 Liters LN2. Dims: 121 x 88 x 59cm | Nitrogen-Di-Water Fog in small pharmaceutical clean rooms, sterile rooms, medical rooms, ISO suites, small semiconductor clean rooms; One 80 mm Fog Outlet with 50mm and 80mm hose options | about 5 Cubic Meters fog/minute; Adjustable fog volume and airflow velocity, optional wireless remote control | about 45 minutes at max fog volume; or about 60 minutes at lower fog volume | ≈ 15 feet through the Single 80mm fog outlet using 80mm fog hose from outlet. Add a Y Adaptor to the single 80mm fog outlet to increase fog performance. | Liquid Nitrogen, Di-Water, Sterile Water or WFI Water |
| Apollo 50 Nitrogen-Di-Water Fogger (Part # Apollo-50-4) on Rolling Trolley | Apollo 50-4 has a dense, Nitrogen-Di-Water Fog with 2-3 micron fog droplets using LN2+DI Water, or WFI or Sterile Water; superb fog volume; 316L, stainless steel enclosure on a Rolling Trolley. 1 80mm Fog Outlet. 13.5 Liters water, 50 Liters LN2. Dims: (HxDxW) 134 x 127 x 59cm. | Nitrogen-Di-Water Fog in medium sized pharmaceutical clean rooms, sterile rooms, medical rooms, ISO suites, medium sized semiconductor clean rooms; Use also in Stage Fog; One 80 mm Fog Outlet with 50mm and 80mm hose options | about 8 Cubic Meters dense fog/minute. Adjustable fog volume and airflow velocity, optional wireless remote control | about 60 minutes at max fog volume; or about 80 minutes at lower fog volume | ≈ 18 feet through the Two 80mm fog outlets using 80mm fog hose from each outlet. Add Y Adaptors to each of the two 80mm fog outlets to increase fog performance. | LN2+DI Water, Sterile Water or WFI Water |
| Apollo 100 Nitrogen-Di-Water Fogger (Part # Apollo-100) on Rolling Trolley | Apollo 100-4 has a dense, Nitrogen-Di-Water Fog with 2-3 micron fog droplets; LN2+ (DI Water, WFI or Sterile Water); two 80mm fog outlets; 316L, stainless steel enclosure on rolling trolley. 2 80mm Fog Outlets. 13.5 Liters water, 100 Liters LN2. Dims (HxDxW) 144x127x59cm | Nitrogen-Di-Water Fog in Medium sized pharmaceutical clean rooms, sterile rooms, medical rooms, ISO suites, small semiconductor clean rooms; TWO 80 mm Fog Outlets with 50mm and 80mm hose options | about 16 Cubic Meters dense fog/minute; Adjustable fog volume and airflow velocity, optional wireless remote control | about 80 minutes at max fog volume; or about 120 minutes at lower fog volume | ≈ 21 feet through the Single 80mm fog outlet using 80mm fog hose from outlet. Add a Y Adaptor to the single 80mm fog outlet to increase fog performance. | LN2+DI Water, Sterile Water or WFI Water |
| Apollo 150 Nitrogen-Di-Water Fogger (Part # Apollo-150) on Rolling Trolley | Apollo150-4 has a dense, Nitrogen-Di-Water Fog with 2-3 micron fog droplets; LN2+ (DI Water, WFI or Sterile Water); three 80mm fog outlets; 316L, stainless steel enclosure on a rolling Trolley. 3 80mm Fog Outlets. 13.5 Liters water, 150 Liters LN2. Dims: (HxDxW) 157 x 127 x 59cm. | Nitrogen-Di-Water Fog in Large sized pharmaceutical clean rooms, sterile rooms, medical rooms, ISO suites, large sized semiconductor clean rooms; Use also in Stage Fog; THREE 80 mm Fog Outlets with 50mm and 80mm hose options | about 24 Cubic Meters dense fog/minute; Adjustable fog volume and airflow velocity, optional wireless remote control | about 120 minutes at max fog volume; or about 180 minutes at lower fog volume | ≈ 25 feet through the Three 80mm fog outlets using 80mm fog hose from each outlet. Add Y Adaptors to each of the three 80mm fog outlets to increase fog performance. | LN2+DI Water, Sterile Water or WFI Water |
Compare the fog output of Nitrogen-Di-Water Foggers and ultrasonic Foggers: https://cleanroom-smokestudies.com/
Additional information
| Smoke Study, Smoke Test or Airflow Visualization Study | AP35 Nitrogen-Di-Water Fogger (Part # AP35) |
|---|---|
| Fogger Enclosure | AP35 built with a 316L stainless-steel enclosure on rolling platform with one 80mm Fog Outlet. Uses 35 L LN2 + 13.5 L DI Water, WFI or Sterile Water. |
| Fog use | Fog in small pharmaceutical clean rooms, sterile rooms, ISO suites. One 80mm Fog Outlet with 80mm hose and 50mm hose optional accessories |
| Fog Metrics | 5 Cubic Meters ultrapure fog/minute |
| Fog Cycle | about 45 minutes at max fog volume; or 60 minutes at lowest fog volume |
| View Distance of Fog | about 15-18 feet using the 80mm Y Adaptor on the 80mm fog outlet and 2 80mm hoses |
| Liquids Used | 35 L LN2 + 11.5 L DI Water, Sterile Water or WFI Water |
| Optional Accessories | 1.2 M x 80mm Fog Wand, Wireless Remote Control, 5M x 80mm Fog Hose, 5M x 50mm fog hose, Accessory Rolling Carry Case, 0.6M x 50mm fog wand, 80mm Y Adaptor with Butterfly Valves, LED Fog Contrast Light, 350mm fog nozzle |
| Voltage and Current | 100-240V 47/63HZ. Power Cords for EU, US, UK, CH, SG, PRC, JP, AUS |
